Vortex Crossfire II 4-12×44 Riflescope DBC (MOA)

The 4-12x44 Crossfire II Riflescope (Dead-Hold BDC MOA) from Vortex Optics is a cost-effective yet durable variable power riflescope. The 4-12x magnification is ideal for close and mid-range high country and target practice. A nitrogen purged and o-ring sealed aluminium housing is built to perform in driving rain and extreme humidity. This model of the Crossfire II is configured with a Dead-Hold BDC reticle and low-profile capped windage/elevation turrets. A fast focus eyepiece, fully multicoated optics, resettable MOA turrets and generous eye relief make the Crossfire II a full-featured scope for sportsmen.

Key Features:

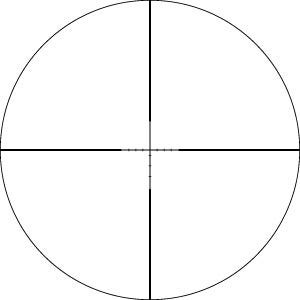

Dead-Hold BDC
Customised compensating reticle subtensions minimise guesswork on holdover and wind drift corrections, ideal for shooting at ranges where calculating accurate bullet drop is essential.

Anti-Reflective Lens Coating
Fully multicoated optics and an additional anti-reflective coating on the objective and the ocular lenses ensure transmission of bright detail-rich images throughout the entire magnification range.

Rugged Construction
The one-piece aerospace aluminium housing is anodised for a durable non-reflective finish. Optical elements are held in place by machined locking rings that ensure perfect lens alignment even after intense recoil and rapid fire. Additionally, the interior is nitrogen purged and o-ring sealed, preventing driving rain and extreme humidity from fogging the optics.

Specifications

Magnification – 4-12X
Objective Lens Diameter – 44 mm
Eye Relief – 9.9 cm - 11.18 cm
Field of View – 7.52 - 2.56 cm/91.4 m (100 yards)
Tube Size – 2.54 cm
Turret Style – Capped
Adjustment Graduation – 1/4 MOA
Travel per Rotation – 15 MOA
Max Elevation Adjustment – 50 MOA
Max Windage Adjustment – 50 MOA
Parallax Setting – 91.44 m (100 yards)
Length – 33.27 cm
Weight – 0.487 kg

              Crossfire II 4-12x44 Dimensions (in cm)

Lengths                                        Heights
  L1     L2     L3    L4      L5      L6        H1    H2
33.4  5.84  4.83 13.97 10.16  9.14     5.11 4.34

Manuals (Download)

• Product
• Reticle
• Parts Diagram

What's In The Box?

• Removable lens covers
• Lens cloth
